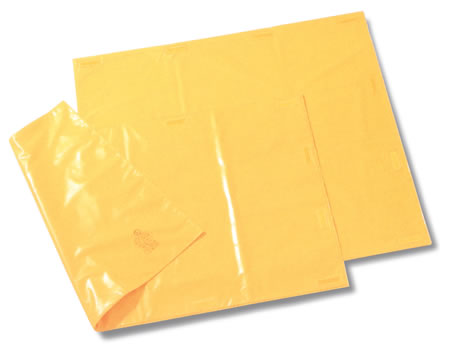

HIGH VOLTAGE PLASTIC INSULATING SHEETS
The PLASTIC INSULATING SHEETS are used as a portable protective device for protection of electrical workers from accidental contact with live electrical conductors, apparatus, or circuits.
The PLASTIC INSULATING SHEETS which substitute for rubber insulating products, are very light and are easy to use compared with rubber insulating products.
| ITEM NO. |
SIZE |
A.C.PROOF TEST
VOLTAGE |
A.C.MAXIMUM USE
VOLTAGE |
|---|
| YS203-11-01 |
600x1000 |
20KV / 1min |
7000V |
| YS203-11-02 |
680x800 |
20KV / 1min |
7000V |
| YS203-11-03 |
680x800 |
20KV / 1min |
7000V |
| YS203-11-04 |
900x1000 |
20KV / 1min |
7000V |
| YS203-11-05 |
800x1000 |
20KV / 1min |
7000V |
| YS203-11-06 |
600x1000 |
20KV / 1min |
7000V |
| YS203-11-20 |
700x1500 |
20KV / 1min |
7000V |
| YS241-01-01 |
600x1000 |
20KV / 3min |
17000V |
| YS241-01-02 |
680x800 |
20KV / 3min |
17000V |
| YS241-01-03 |
680x1200 |
20KV / 3min |
17000V |
| YS241-01-04 |
800x1000 |
20KV / 3min |
17000V |
| YS241-01-05 |
900x1000 |
20KV / 3min |
17000V |
| YS242-01-01 |
600x1000 |
30KV / 3min |
26500V |
| YS242-01-02 |
680x800 |
30KV / 3min |
26500V |
| YS242-01-03 |
680x1200 |
30KV / 3min |
26500V |
| YS242-01-04 |
800x1000 |
30KV / 3min |
26500V |

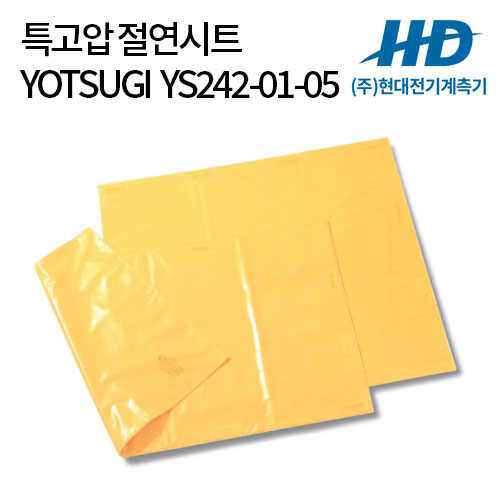

| YS242-01-05 |
900x1000 |
30KV / 3min |
26500V |
