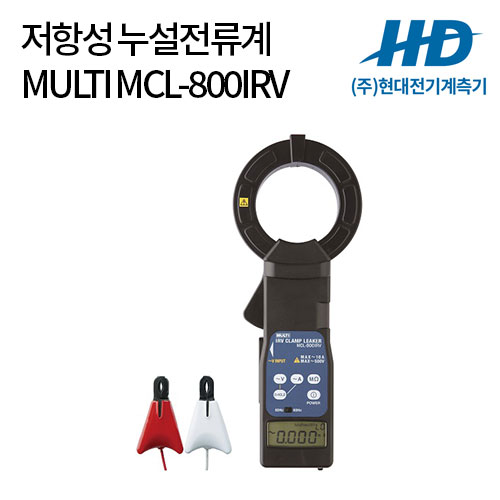

Integrated Ior Clamp Leaker with Non-contact Voltage Input Sensor
MCL-800IRV은 리드선으로 직접 전압입력합니다.
*국내 전로에서는 단상/ 3상3선식까지만 Ior값이 유효합니다.
3상4선식은 Ior값이 유효하지 않습니다.
FEATURES
・Safety by non-contact sensor, not touching live part directly (prevention of electric shock, short-circuit, etc.).
・Easy to carry and operate, clamp CT + display part integrated type.
・Measurable line current + leakage current + resistive leakage current by one unit.
・Available direct voltage input at live part as ordinary.
・Calculable insulation resistance value（MΩ）by voltage & current (only in case of using direct voltage input sensors)
| SPECIFICATIONS |
|---|
| Measuring Function |
Line Current
Leakage Current
Resistive Leakage Current
Voltage |
|---|
| Available Circuits for Ior Measurement |
1P/2W, 1P/3W, 3P/3W, 3P/4W star connection |
|---|
| CT Inside Diameter |
φ80mm |
|---|
| AC Current Range |
10mA/100mA/1000mA/10A |
|---|
| Minimum Resolution |
0.001mA |
|---|
| Other Function |
Over Range Display, Data Hold, Low Battery Indication, Auto Power Off |
|---|
| Sampling Rate |
Two Times/Second |
|---|
| Operating Circuit Voltage |
Less than AC500V (Isolated Electric Wire) |
|---|
| Operating Temp. & Humidity Range |
0~50℃ Less than 85%RH (w/o condensation) |
|---|
| Power Supply |
AAA Size Alkaline Battery x 3 |
|---|
| Dimension/Weight |
W71×H315×D37mm Approx.750g |
|---|
| Accessories |
Carrying Case, Non-contact Voltage Sensor, Direct Voltage Input Sensor, Instruction Manual
|
|---|
