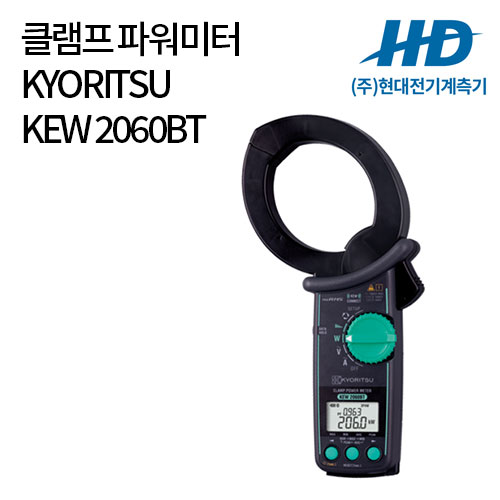

| Wiring connections | 1P2W, 1P3W, 3P3W, 3P4W |
|---|
Measurements and
parameters | Voltage, Current, Frequency, Active power, Reactive power,
Apparent power, Power factor(cosθ), Phase angle,
Harmonics(THD-R/THD-F), Phase rotation |
|---|
| AC Voltage |
|---|
|
|---|
| Range | 1000V |
|---|
| Accuracy | ±0.7%rdg±3dgt (40.0~70.0Hz)
±0.3%rdg±5dgt (70.1~1KHz) |
|---|
| Crest factor | 1.7 or less |
|---|
| AC Current |
|---|
|
|---|
| Range | 40.00/400.0/1000A (Auto-ranging) |
|---|
| Accuracy | ±1.0％rdg±3dgt (40.0~70.0Hz)
±2.0％rdg±5dgt (70.1~1kHz) |
|---|
| Crest factor | 3 or less on 40.00A/400.0A range,
3 or less 1500A peak on 1000A range |
|---|
| Frequency |
|---|
|
|---|
| Display range | 40.0~999.9Hz |
|---|
| Accuracy | ±0.3％rdg±3dgt |
|---|
| Active power |
|---|
|
|---|
| Range | 40.00/400.0/1000kW (Auto-ranging) |
|---|
| Accuracy | ±1.7%rdg±5dgt (PF1, sine wave, 45～65Hz)
influence of phase angle within ±3.0° |
|---|
| Apparent power |
|---|
|
|---|
| Range | 40.00/400.0/1000kVA (Auto-ranging) |
|---|
| Reactive power |
|---|
|
|---|
| Range | 40.00/400.0/1000kVar (Auto-ranging) |
|---|
| Power factor |
|---|
|
|---|
| Display range | -1.000~0.000~1.000 |
|---|
| Phase angle(1P2W only) |
|---|
|
|---|
| Display range | -180.0~0.0~+179.9 |
|---|
| Harmonics |
|---|
|
|---|
| Analysis order | 1st~30th order |
|---|
| Accuracy | ±5.0％rdg±10dgt (1~10th)
±10％rdg±10dgt (11~20th)
±20％rdg±10dgt (21~30th) |
|---|
| Phase rotation | ACV 80~1100V (45~65Hz) |
|---|
| Other functions | MAX/MIN/AVG/PEAK, Data hold, Back light, Auto power off |
|---|
| General |
|---|
|
|---|
Communication
interface | Bluetooth®5.0,
Android™5.0 or more, iOS 10.0 or more ※1 |
|---|
| Power source | LR6 (AA) (1.5V) ×2 |
|---|
Continuous
measuring time | Approx. 58 hours |
|---|
| Conductor size | φ75 mm (max) and busbar of 80 × 30 mm or less |
|---|
| Dimensions / Weight | 283(L) × 143(W) × 50(D) mm / Approx. 590g (including batteries) |
|---|
| Applicable Standards | IEC 61010-1,
IEC 61010-2-032 (main unit) / IEC 61010-031 (test leads)
CAT IV 600 V / CAT III 1000 V Pollution degree 2,
IEC 61326 (EMC) Class B, EN50581 (RoHS), EN 301 489-1,
EN 300 328, EN 62479, IEC 60529 (IP40) |
|---|
| Included Accessories | 7290 (Test leads)
9198 (Soft Case)
LR6(AA)×2, Instruction Manual |
|---|
