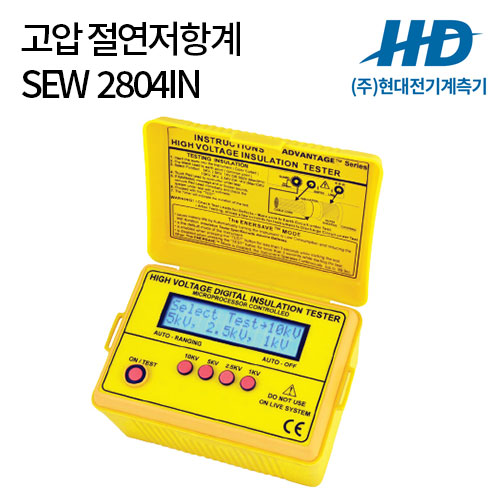

● Microprocessor-controlled.
● Four insulation test
voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph
indicates test voltage; rise and decay can be observed
during tests.
●
Visual and audible warning if external voltage is present.
● EnerSave™
feature to extend battery life.
● 2 Lines × 16 characters large LCD.
● Low
battery consumption.
● Low battery indicator.
● Overload protection.
●
Auto-off.
● Show test time duration (up to 99.9s) for easy comparison.
●
EEPROM calibration.
● Built-in carry case and test leads in separate
pouch.
[SPECFICATIONS]
| Test voltage (DC V) |
1kV
/ 2.5kV /
5kV / 10kV | Measuring ranges
(Auto-Ranges) |
0-50GΩ / 0-125GΩ / 0-250GΩ /
0-500GΩ | | Accuracy |
0-50GΩ : ±3% rdg
50-500GΩ : ±5% rdg | | Dimensions |
170(L) × 120(W) × 95(D)mm | Weight
(battery included) |
Approx. 1030g | | Power source |
1.5V(AA) × 8 Alkaline batteries | | Safety standard |
EN
61010-1
EN
61326-1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
