| | DC Current | 600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600 A range) |
| | AC Current | 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±0.3 A (at 600 A) |
| | Crest factor | 600.0 A range: 3
2000 A range: 2.84 or less |
| | DC+AC Current | 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy:±1.3% rdg. ±1.3 A (at 600 A) |
| | DC Voltage | 600.0 mV to 1500 V, 5 ranges, Basic accuracy: ±0.5% rdg. ±3 dgt. |
| | AC Voltage | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt. |
| | DC+AC Voltage | 6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt. |
| | Resistance | 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt. |
| | Electrostatic capacity | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt. |
| | Frequency | 9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt. |
| | Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| | Voltage detection | Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz |
| | Other functions | Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V,
Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment |
| | Dustproof, waterproof | Grip: IP54 (when measuring an insulated conductor only),
Jaw (the current sensor portion of the instrument)/
barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet. |
| | Power supply | LR03 Alkaline battery ×2, Continuous use 45 hr (Backlight OFF) |
| | Core jaw diameter | 92 mm (3.62 in) W× 18 mm (0.71 in) D, φ55 mm (2.17 in) |
| | Dimensions and mass | 65 mm (2.56 in) W × 250 mm (9.84 in) H × 35 mm (1.38 in) D mm, 530 g (18.7 oz) |

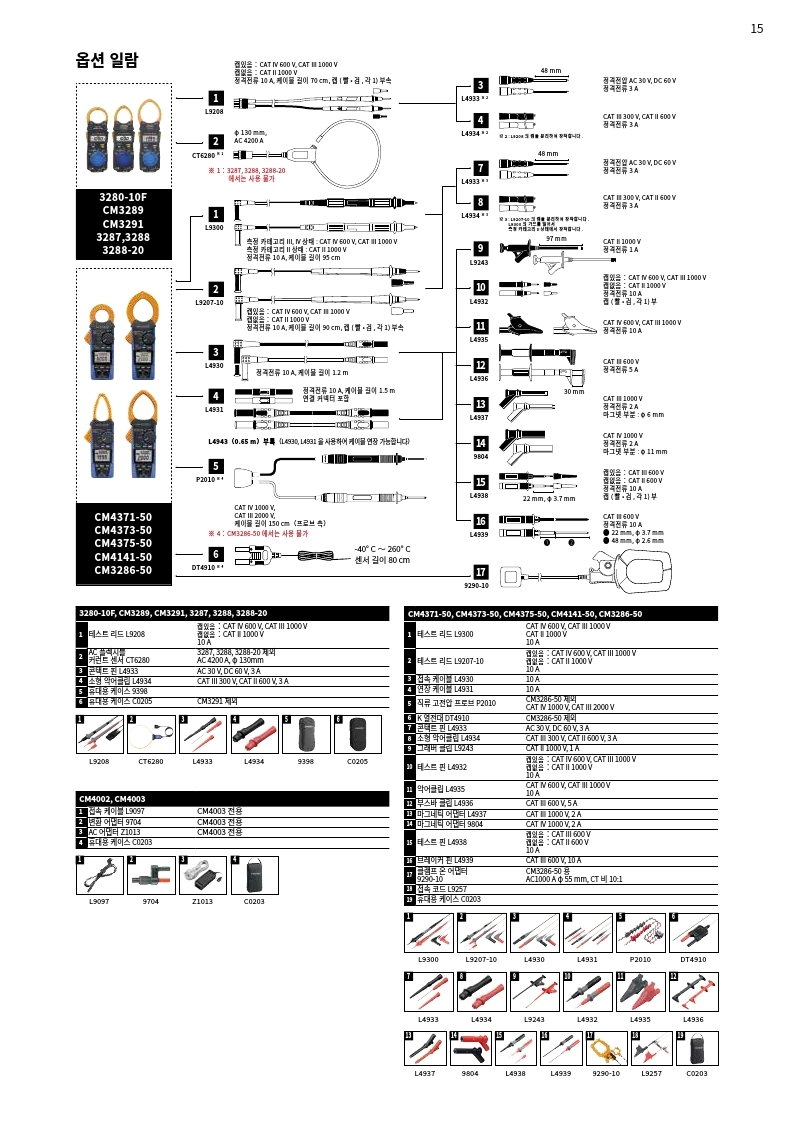

| | Accessories | TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual×1 |
