  • 모델명

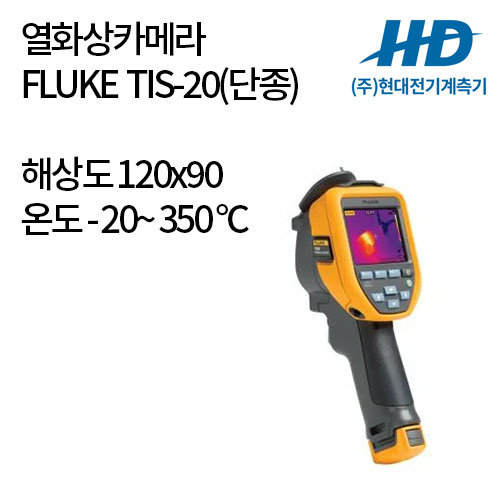

    FLUKE TIS-20

  • 제품명

    열화상카메라

  • 제품특징

    FLUKE TIS-20

위시리스트0
제조사 FLUKE
브랜드 FLUKE
모델 FLUKE TIS-20
판매가격 0원
배송비결제 주문시 결제

상품의 재고가 부족하여 구매할 수 없습니다.

  • 상품 정보

    상품 상세설명

    Performance built for everyday troubleshooting

    Performance built for everyday troubleshooting
    • Scan large areas fast with fixed focus simplicity
    • See the detail with a D:S of 193:1
    • Clearly see what you are inspecting with a 3.5 inch, 320x240 LCD screen - 33% more viewing area compared to a 3.0 inch LCD screen
    • Rugged and reliable


    Securely store and manage your images

    Securely store and manage your images
    • Store thousands of images with the internal 4 GB memory
    • Additional storage and easy image transfer with optional 4 GB micro SD





    • Quickly scan large areas with point and shoot simplicity
    • Quality images - 120x90 resolution (10,800 pixels)
    • D:S of 193:1
    • Find problems fast with the exclusive IR-Fusion® Blending mode – blending reveals key details to help you find potential issues
    • 3.5 inch, 320x240 LCD
    • 5 megapixel digital camera
    • Smart battery system – lithium ion smart battery with five-segment LED charge level display
    • Stores thousands of images – 4 GB internal memory and optional 4 GB micro SD card



    Key Features
    IFOV (spatial resolution)5.2 mRad
    Detector resolution120x90
    Field of view35.7 ° x 26.8 °
    Distance to spot193:1
    Wireless connectivityYes
    IR-Fusion® Technology
    AutoBlend™ mode3 presets (0%, 50%, 100%)
    Picture-In-Picture (PIP)-
    Focus systemFixed focus, Minimum focus distance 0.45 m (1.5 ft)
    Ruggedized display3.5 inch (landscape) 320x240 LCD
    Rugged, ergonomic design for one-handed useYes
    Thermal sensitivity (NETD)≤0.10 °C at 30 °C target temp (100 mK)
    Temperature measurement range (not calibrated below -10 °C)-20 °C to +350 °C (–4 °F to 662 °F)
    Level and spanSmooth auto and manual scaling
    Fast auto toggle between manual and auto modesYes
    Fast auto-rescale in manual modeYes
    Minimum span (manual mode)2.5 °C
    Minimum span (auto mode)5 °C
    Built-in digital camera (visible light)5 MP
    Frame rate9 Hz
    Laser pointer-
    Data storage and Image Capture
    Extensive SD memory systemInternal 4 GB (optional 4 GB micro SD card sold separately)
    Image capture, review, save mechanismOne-handed image capture, review, and save capability
    Image file formatsNon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2);
    No analysis software required for non-radiometric (.bmp, .jpg) files
    Memory reviewThumbnail review
    SoftwareSmartView® software - full analysis and reporting software and Fluke Connect® (where available)
    Export file formats with SmartView® softwareBMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
    Voice annotation-
    IR-PhotoNotes™-
    Standard video recording-
    Radiometric video recording-
    Video file formats-
    Streaming video (remote display)-
    Battery
    Batteries (field-replaceable, rechargeable)One lithium ion smart battery pack with five-segment LED display to show charge level
    Battery lifeFour+ hours
    Battery charge time2.5 hours to full charge
    Battery charging systemIn-imager charging (optional external charger sold separately)
    AC operationAC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
    Temperature Measurement
    Accuracy±2 °C or 2% (at 25 °C nominal, whichever is greater)
    On-screen emissivity correctionYes (both value and table)
    On-screen reflected background temperature compensationYes
    On-screen transmission correctionYes
    Color Palettes
    Standard palettes6: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
    Ultra Contrast™ palettes-
    General Specifications
    Color alarms (temperature alarms)-
    Infrared spectral band7.5 μm to 14 μm
    Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
    Storage temperature-20 °C to +50 °C (-4 °F to 122 °F)
    Relative humidity10% to 95%, non-condensing
    Center-point temperature measurement-
    Spot temperatureYes
    User-definable spot markers-
    Center box-
    Safety standardsEN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
    Electromagnetic compatibilityEN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
    C TickIEC/EN 61326-1
    US FCCEN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
    Vibration and shock2G, IEC 68-2-6 and 25G, IEC 68-2-29
    DropEngineered to withstand 2 m (6.5 ft) drop
    Size (H x W x L)26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
    Weight (battery included)Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)
    Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
    WarrantyTwo-years (standard), extended warranties are available
    Recommended calibration cycleTwo-years (assumes normal operation and normal aging)
    Supported languagesCzech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    Model NameDescriptionPrice List
    FLK-TiS20Includes:
    • Thermal imager
    • AC charger/power supply with mains adapters for battery charging and AC operation
    • One rugged lithium ion smart battery
    • Soft transport bag
    • Statement of factory calibration
    • Quick start guide
    • Safety sheet
    On Request

    Thermal Imaging AccessoriesPrice List
    FLK-TRIPOD3Tripod Mounting Base
    Use with Ti400, Ti300 and Ti200 Infrared Cameras.
    On Request

    Batteries, Chargers and AdaptersPrice List
    FLK-TI-SBC3BCharging base for Ti-SBP3 Rechargeable Lithium-Ion Battery Packs. Use with models TiS65, TiS60, TiS55, TiS50, TiS40, TiS45, TiS20, TiS10, TiX560, TiX520, Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, Ti95, Ti90, TiR125, TiR110, TiR105, Ti32, TIR32, Ti29, TiR29, Ti27 and TiR27.On Request
    FLK-TI-SBP3Extra battery pack for TiS65, TiS60, TiS55, TiS50, TiS40, TiS45, TiS20, TiS10, Ti125, Ti110, Ti105, Ti100, TiR125, TiR110, TiR105, Ti32, Ti29 and Ti27 Infrared Cameras.On Request
    TI-CAR CHARGERInfrared Camera Vehicle Charger
    For the ultimate flexibility in the field - recharge your infrared camera wherever and whenever you need to.
    For use with all models except FlexCam.
    On Request
