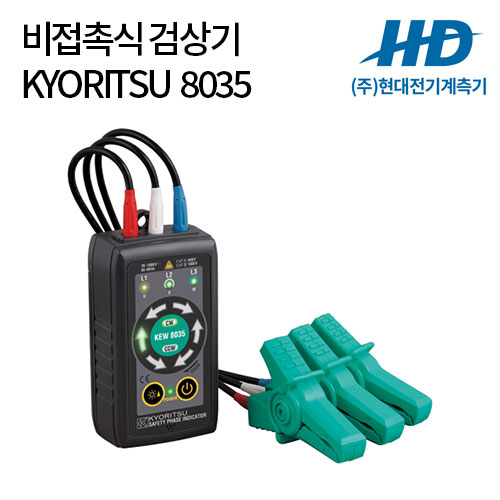

Functions |
|
|
|
Phase rotation (Clockwise or Counter Clockwise),
Presence of open phase |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Detection method |
|
|
|
Electrostatic induction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measuring voltage range |
|
|
|
From 70 to 1000V AC phase to phase (sine wave, continuous input) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Clamp diameter range |
|
|
|
From φ2.4 to 30mm insulated cables |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Measuring frequency range |
|
|
|
45 to 66Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Phase rotation |
|
|
|
| Clockwise: | |
Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer | | | Counter Clockwise: | |
Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Visual indication |
|
|
|
Via LEDs with Super brightness function |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Battery voltage warning |
|
|
|
Power LED blinks if battery voltage is too low. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating conditions |
|
|
|
Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Storage conditions |
|
|
|
Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Applicable standards |
|
|
|
IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree2,
IEC 61326-1, IEC 61557-1, -7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power supply |
|
|
|
Alkaline battery (LR6) ×4
* Continuous use: Approx. 100 hours (Auto power off in about 10 min.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dimensions |
|
|
|
112(L) × 61(W) × 36(D) mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight |
|
|
|
Approx. 380g |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Test leads |
|
|
|
Double insulated cables, length approx. 70cm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Colours code |
|
|
|
L1(U): RedL2(V): WhiteL3(W): Blue |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Accessories included |
|
|
|
9096 (Carrying case), Alkaline battery (LR6) × 4, Instruction manual |
|
|
|
|
|
|
|
|
