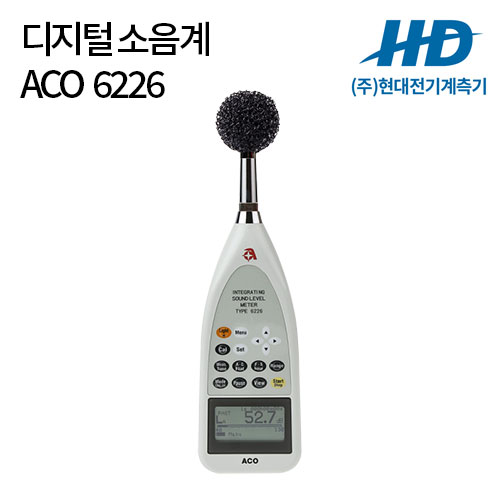

 "Noise." Though it is an everyday problem, only experts are engaged in noise level measurements. Is it possible to make noise measuremensts easy even for beginners... Our simple question has triggered off the creation of a compact, light and easy-to-handle sound level meter with an excellent cost/performance ratio.
This is an integrating-averaging sound level meter appropriate for environmental noise measurements, equipped with the following measurement functions; equivalent continuous A-weighted sound pressure level(Leq), sound exposure level (LE), and percentile level(Lx). It is easily operated to fulfill various functions from measuring the noise of traffic, aircraft and machinery to quality control and diverse tests. Standard equipment includes an RS-232C interface, and connection to an outer CPU enables continuous operation.
Measurement results are expressed both by bar graph and numerically on a liquid crystal display. Further, the wide dynamic range of 100dB eliminates the need for range switching, realizing easier and more accurate measurements.
FEATURES
- Percentile level(Lx) - any 5 selectable values
- Measure equivalent continuous A-weighted sound pressure level capability(Leq)
Measure environmental noise required for securing occupational health capability
- Wide linearity range of 100dB
- Equipped with an RS-232C function, allows for processing of data by PC
- Equipped with memory function, allows for storing up to 15,000 bits of data
- Backlite LCD screen for high-visibility and easy-on-the-eye display
- Excellent cost/performance ratio overpowers comparably priced products
SPECIFICATION
| Applicable standards |
IEC 60651 Type 2
IEC 60804 Type 2
IEC/CDV 61672-1 Class 2 | | Measurement functions |
Lp : Sound pressure level
Leq : Equivalent continuous A-weighted sound pressurelevel
Le : Sound exposure level
Lmax : Maximum sound level
Lmin : Minimum sound level
Lx : Percentile level(5 values of free select)
Lpeak : Waveform peak hold(C weighting selectable) | | Max. Measurement Level |
137 dB rms, 130 dB at c.f.3 | | Measurement Range |
28dB to 130dB (A)
33dB to 130dB (C)
38dB to 130dB (F) | | Time weighting |
Fast, Slow | | Microphone |
1/2 Electret condenser microphone | | Display |
Type : Liquid crystal and Back light(128x64 points)
Digital display : 4 digits, Display Period:1s
Bar display : Display Period:1s | | Battery |
Four 1.5V alkaline cells IEC type LR6, optional AC adapter | | Dimensions and weight |
85(W)x284(H)x46(D). Approx.420g |
|
