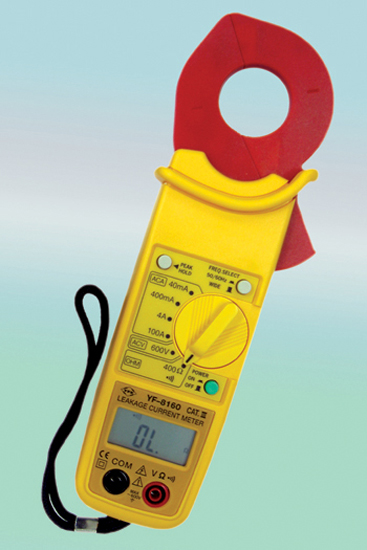

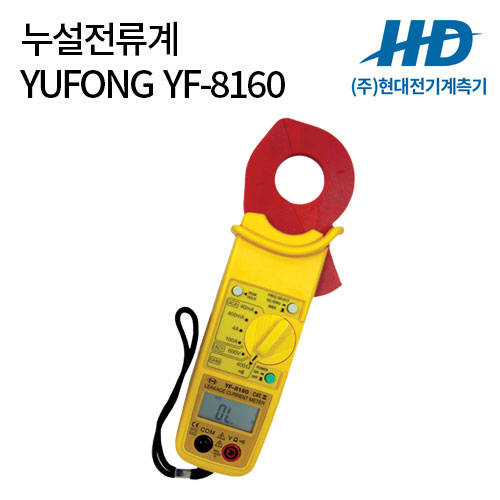

YF-8160 ... 100A Leakage AC Clamp Meter<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />
DISPLAY
- 3¾ digits LCD with maximum reading 4000.
- Overload indication.
- Low battery indication.
FUNCTIONS
- Function keys: Peak Hold.
- LEAKAGE CURRENT TEST.
- Test ranges: ACV, ACA , Ohm, Continuity.
- Continuity test below 100Ohm will have buzzer sound.
- Alternative for supply frequency.
- With LPF (Low Pass Filter) function, 50/60Hz and wide frequency function (40~1KHz).
SPECIFICATIONS
Model
|
YF-8160
|
Measuring current |
40mA/400mA/4A/100A |
Display counts |
4000 |
Max. Conductor size |
35mm |
AC Current |
0.01mA ~ 100A +/- (1.5%+5) |
Leakage current |
YES |
AC Voltage |
1V ~ 600V +/- (1.5%+5) |
Continuity buzzer |
YES (below 100Ohm ) |
Peak hold |
YES |
Size |
250*85*35mm |
Weight |
342g |
