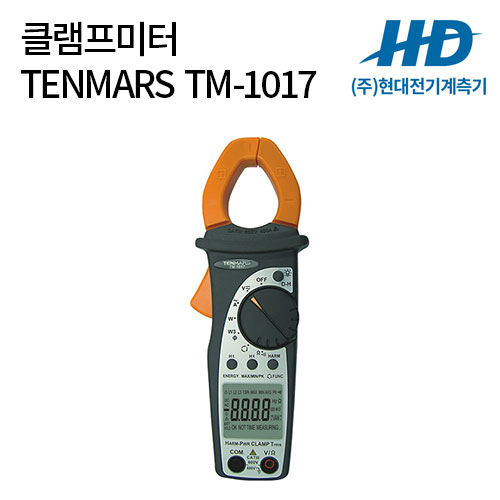

TM-1017 ... 400A Ture RMS <?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />
AC Power Clamp Meter
+ Phase Rotation Tester
- FUNCTIONS W3Ø,HV,HA,PHASE SEQ,Audible continuity tests.
- Frequency with test leads and jaws up to 400Hz.
- Active,Reactive, Apparent power on.
- Phase sequence with one wire.
- Single/Three phase systems.
- Active,Reactive,Apparent energy on.
- Power, Factor,cosØ on Single/ Three phase systems.
- MAX /MIN /AVG function.
- <?xml:namespace prefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" />FastPEAK function(1ms).
- Phase sequence.
- Voltage/Current Harmonics up to 25th with THD %.
- Energy.
- Total Harmonic Distortion (HTD%).
SPECIFICATIONS
|
Model
|
TM-1017
|
|
Max measuring current |
400A |
|
Display counts |
10000 Count Backlit LCD |
|
Max. Conductor size |
30 mm (11.8¡¨) |
|
AC Current |
0.1~400A +/- (1.0%+3) |
|
AC Voltage |
0.1~ 599.9V +/-(1.0%+3) |
|
DC Voltage |
0.1~ 599.9V +/-(1.0%+3) |
|
Resistance |
0.1~1999 Ohm +/- (1.0%+5) |
|
Continuity buzzer |
YES |
|
Frequency |
4 0Hz~399.9Hz +/- (0.5%+1) |
|
Bargraph |
YES |
|
Autorange |
YES |
|
Auto power OFF |
YES |
|
Peak hold |
YES |
|
Data hold |
YES |
|
MAX/MIN |
YES |
|
Dimension |
205x64x39mm(LxWxH). |
|
Weight |
280g.(including battery) |
|
Power |
2 batteries 1.5V AAA type |
