QLK TORQUE WRENCH [토크렌치]

위시리스트0

추천하기

상품의 재고가 부족하여 구매할 수 없습니다.

위시리스트

상품 정보

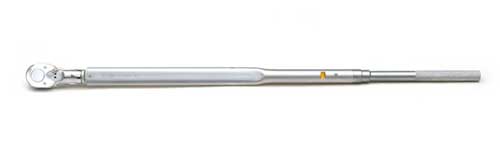

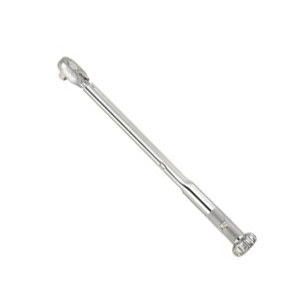

QLK Adjustable, Ratchet Torque Wrenches

Adjustable, Ratchet Torque WrenchesFreely set torque values within the capacity range. Replaceable socket, ratchet wrenches.

FEATURES

The ratchet improves efficiency. These wrenches are well suited for repetitive work
By replacing the sockets, various sizes of fasteners can be tightened within the tool's capacity range
By reversing the ratchet, the wrench can be used to loosen fateners counter-clokwise
Tightening to a torque setting can only be done clockwise
Accuracy:±3% of indicated value over the full range

SPECIFICATIONS

Model QLK(kgf·cm/kgf·m)

Model	Range	Increment	Total length	Weight
60QLK	20~60 kgf·cm	1 kgf·cm	186 mm	0.18 kg
120QLK	40~120 kgf·cm	2 kgf·cm	186 mm	0.18 kg
250QLK	50~250 kgf·cm	2 kgf·cm	240 mm	0.29 kg
500QLK	100~500 kgf·cm	5 kgf·cm	253.5 mm	0.45 kg
900QLK	200~900 kgf·cm	10 kgf·cm	352 mm	0.69 kg
1000QLK	200~1000 kgf·cm	10 kgf·cm	352 mm	0.69 kg
1400QLK	400~1400 kgf·cm	10 kgf·cm	392 mm	0.69 kg
1800QLK	400~1800 kgf·cm	20 kgf·cm	478 mm	1.45 kg
2000QLK	400~2000 kgf·cm	20 kgf·cm	478 mm	1.45 kg
2800QLK	4~8 kgf·m	0.2 kgf·m	678 mm	1.9 kg
4200QLK	6~42 kgf·m	0.2 kgf·m	950 mm	3.3 kg
5600QLK	8~56 kgf·m	0.3 kgf·m	1195 mm	5 kg
7000QLK	10~70 kgf·m	0.5 kgf·m	1315 mm	7 kg
8500QLK	10~85 kgf·m	0.5 kgf·m	1388 mm	8.5 kg
10000QLK	10~100 kgf·m	0.5 kgf·m	1538 mm	9.8 kg
14000QLK	20~140 kgf·m	1 kgf·m	1844 mm	14 kg
15000QLK	20~150 kgf·m	1 kgf·m	1844 mm	14 kg
21000QLK	70~210 kgf·m	1 kgf·m	2064 mm	19.5 kg

Model N-QLK(cN·m/N·m)

Model	Range	Increment	Total length	Weight
N30QLK	100~300 cN·m	5 cN·m	186 mm	0.18 kg
N60QLK	2~6 N·m	0.1 N·m	186 mm	0.18 kg
N120QLK	4~12 N·m	02 N·m	186 mm	0.18 kg
N230QLK	7~23 N·m	0.2 N·m	231.5 mm	0.27 kg
N450QLK	10~45 N·m	0.5 N·m	253.5 mm	0.45 kg
N900QLK	20~90 N·m	1 N·m	352 mm	0.69 kg
N1000QLK	20~100 N·m	1 N·m	352 mm	0.69 kg
N1400QLK	40~140 N·m	1 N·m	392 mm	0.69 kg
N1800QLK	40~180 N·m	2 N·m	478 mm	1.45 kg
N2000QLK	40~200 N·m	2 N·m	478 mm	1.45 kg
N2800QLK	40~280 N·m	2 N·m	678 mm	1.9 kg
N4200QLK	60~420 N·m	2 N·m	950 mm	3.3 kg
N5600QLK	80~560 N·m	3 N·m	1195 mm	5 kg
N7000QLK	100~700 N·m	5 N·m	1315 mm	7 kg
N8500QLK	100~850 N·m	5 N·m	1388 mm	8.5 kg
N10000QLK	100~1000 N·m	5 N·m	1538 mm	9.8 kg
N14000QLK	200~1400 N·m	10 N·m	1844 mm	14 kg
N15000QLK	200~1500 N·m	10 N·m	1844 mm	14 kg
N21000QLK	700~2100 N·m	10 N·m	2064 mm	19.5 kg

※ 위 사양외의 제품은 별도 문의주시기 바랍니다.
