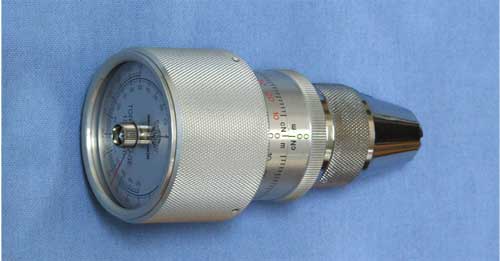

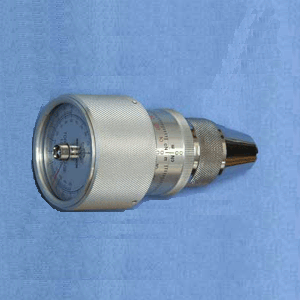

SGK Torque Gauge

Three Part Chuck Type Torque GaugeCapable of accurately measuring very low torque value.

With peak indicator(Optional) ⁄ Three part chuck

FEATURES

Due to their miniature design and light weigth, these gauge are convenient and easy to carry.
A three part chuck with knurled surface enables fimly gripping even odd shapes.
The inset scale face helps avoid incidental damage.
The gauges measure clockwise and counterclockwise.
With scales on the sides and the face, torque readings can be obtained either way.
Accuracy:±3% of the indicated value over the full range.

SPECIFICATIONS

Model SGK(I)(gf·cm)

Model	Range (CW/CCW)	Increment	Chucking dia.	Total length	Weight
Model	gf·cm		Chucking dia.	Total length	Weight
90(I)SGK	10~90	2	1~6.mm	106mm	0.29kg
150(I)SGK	20~150	2
300(I)SGK	40~300	5
600(I)SGK	50~600	10
1200(I)SGK	100~1200	20
2400(I)SGK	200~2400	50

Model SGK(II)(kgf·cm)

Model	Range (CW/CCW)	Increment	Chucking dia.	Total length	Weight
Model	kgf·cm		Chucking dia.	Total length	Weight
1.5(II)SGK	0.1~1.5	0.02	1~8.5mm	132mm	0.6kg
2.4(II)SGK	0.2~2.4	0.02
3.6(II)SGK	0.4~3.6	0.05
6(II)SGK	0.5~6	0.1
9(II)SGK	1~9	0.2
15(II)SGK	1~15	0.2

Model N-SGK(I)(mN·m)

Model	Range (CW/CCW)	Increment	Chucking dia.	Total length	Weight
Model	mN·m		Chucking dia.	Total length	Weight
N90(I)SGK	1~9	0.2	1~6.5mm	106mm	0.29kg
N150(I)SGK	2~15	0.2
N300(I)SGK	4~30	0.5
N600(I)SGK	5~60	1
N1200(I)SGK	10~120	2
N2400(I)SGK	20~240	5

Model N-SGK(II)(cN·m)

Model	Range (CW/CCW)	Increment	Chucking dia.	Total length	Weight
Model	cN.m		Chucking dia.	Total length	Weight
N1.5(II)SGK	1~15	0.2	1~8.5mm	132mm	0.6kg

※ 위 사양외의 제품은 별도 문의주시기 바랍니다.
