Test Lead |
|
|
Hard Point Test Lead Set
- Extremely hard alloy tips resist wear
- Distinctive comfort grip probes
- Economical PVC insulated leads
- Cat III, 1000V, 10A
|
| |
|
|
 |
|

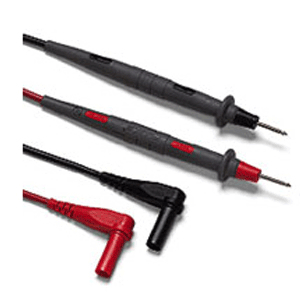

Premium DMM Test Lead Assembly
- Comfort-grip probe with silicone-insulated test leads, and integral strain relief.
- Recommended for µV measurements.
- Safety-shrouded, right-angle inputs.
- 48" (1.2m).
- 1000V, 10A. UL 3111-1 Listed.
|
| |
|
|
 |
|
Electronic Test Probes with Replacement Tips
- Small profile design is comfortable and allows accessibility to hard to reach test points
- Comes with 5 sets of replaceable tips (includes 3 sets of spring loaded gold plated and 2 sets of stainless steel replacement tips)
- Probes are 102 mm (4") long and include 1m (39") leads
- Compatible with all instruments that accept standard 4 mm (.160"), shrouded banana plugs
- CAT IV, 600V; CAT III, 1000V, 3A
- Replacement tips available as Fluke model TP912
|
| |
|
|
 |
|
Mini-Hook Test Leads
- 1 pair (red and black) test leads with multi-stacking 4 mm banana plugs and mini-hooks
- Mini-hooks attach to component leads up to 1.5 mm (0.060") diameter
- 91 cm (36") long PVC insulated leads
- Maximum ratings for non-hazardous applications 300V, <1/2 mA
- Maximum ratings for CE compliance 30 Vrms or 60 Vdc, 5 Amps
|
| |
|
|
 |
|
SureGripTM Silicone Test Lead Extension Kit
- 1000 V CAT III, 600 V CAT IV, 10A
- Includes 2 female couplers to extend your currnt test leads by 1.5 meters.
- Silicone insulated wire resists hat and Cold
- Superior strain relief
|
| |
|
|
 |
|
SureGripTM Silicone Test Leads (right to right)
- 1000 V CAT III, 600 V CAT IV, 10A
- 1.5 meter silicone insulated wire resists heat and cold
- superior strain relief
|
| |
|
|
 |
|
SureGripTM Silicone Test Leads (straight to right)
- 1000 V CAT III, 600 V CAT IV, 10A
- 1.5 meter (4.9') silicone-insulated wire resists heat & cold
- Superior strain relief
|
| |
|
|
 |
|
Mini-Pincer Test Leads
- 1 pair (red and black) test leads with multi-stacking 4 mm banana plugs and mini-pincers
- mini-pincers open to 2.3 mm (0.090")
- 91 cm (36") long PVC insulated leads
- Maximum ratings for non-hazardous applications 300V, <1/2 mA
- Maximum ratings for CE compliance 30 Vrms or 60 Vdc, 5 Amps
|
|
Test Lead Set |
 |
|
- Starter kit for Industrial applications
- Includes one pair (red and black):
AC220, TP220, TL222
- 1000 V CAT III, 600 V CAT IV, 10A
|
| |
|
|
 |
|
- Starter kit for Electrical applications
- Includes one pair (red and black):
AC220, TP1, TL224
- 1000 V CAT III, 600 V CAT IV, 10A Starter kit for Industrial applications
- Includes one pair (red and black):
AC220, TP220, TL222
- 1000 V CAT III, 600 V CAT IV, 10A
|
| |
|
|
 |
|
Basic Electronic Test Lead Set
- Features at a Glance:
The TL80 kit consists of two each (one black and one red):
- One meter long test lead with a safety shrouded, right angle banana connector on one end and a stainless steel test probe on the other end, rated up to 10A. Silicone-insulated leads have superior flexibility in cold temperatures and resistance to high temperatures
- Insulated alligator clip rated up to 5A
- Insulated probe tip extender rated up to 3A
- Zippered, vinyl soft case
- Compatible with Fluke and other multimeters that accept safety shrouded, standard diameter banana connectors
- CAT III 300V
- UL approved
|
| |
|
|
 |
|
- One meter long test lead with a safety shrouded, right angle banana connector on one end and a stainless steel test probe on the other end, rated up to 10A. Silicone-insulated leads have superior flexibility in cold temperatures and resistance to high temperatures
- Insulated alligator clip rated up to 5A
- Insulated probe tip extender rated up to 3A
- Modular test probe with banana connector in the handle, rated up to 10A
- Modular hook-style clip test lead with banana connector, rated up to 5A
- Modular pinch-style clip test lead with banana connector, rated up to 5A
- Modular alligator clip with banana connector, rated up to 5A
- Slide-on IC probe tip adapter (rated up to 3A) and test lead couplers
- Bare spade lug with banana connector, rated up to 10A
- CAT III 300V
- Compatible with Fluke and other multimeters that accept safety shrouded, standard diameter banana connectors
- UL approved
|
| |
|
|
 |
|
Industrial Test Lead Kit
- Special value SureGrip Set for industrial applications.
- Includes two sizes of alligator clips for reliable connections, 4 mm test probes for European outlets, test leads and a roomy carry case to hold and protect your meter and all your accessories.
- All 1000 V CAT III, 600 V CAT IV rated.
- Set includes:
- AC220 Plunger Style Alligator Clips
- AC285 Large Jaw Alligator Clips
- TP74 4mm Test Probes
- TL224 Right to Straight Test Leads
- Zippered Vinyl Carry Case with Moveable Divider
|
| |
|
|
 |
|
SureGrip Master Accessory Set
- Special value SureGrip Master Set is a complete selection of test tool accessories for any industrial application.
- Includes a convenient roll-up pouch that neatly stores each accessory.
- 1000 V CAT III, 600 V CAT IV rated.
- SureGrip Set Includes:
- AC220 Plunger Style Alligator Clips
- AC280 Plunger Style Hook Clips
- AC283 Plunger Style Pincer Clips
- AC285 Large Jaw Alligator Clips
- TP220 Sharp Test Probes
- TL224 Right to StraightTest Leads
- 6-Pocket Storage Pouch
|
| |
|
|
|
Test Probe |
 |
|
Slim ReachTM Test Probe
Safety designed probes with slender, Slim-Reach bodies and stainless steel tips.
Effective for reaching closely-spaced deep test points or recessed terminals.
All Slim-Reach probes are rated for 10 amps, and may be used in 1000V CAT III environments.
Flat 1.78 mm x 2.79 mm (0.07 in x 0.11 in) blade designed to hold securely in blade type electrical wall sockets. |
| |
|
|
 |
|
Slim ReachTM Test Probe
Safety designed probes with slender, Slim-Reach bodies and stainless steel tips. Effective for reaching closely-spaced deep test points or recessed terminals.
All Slim-Reach probes are rated for 10 amps, and may be used in 1000V CAT III environments.
2 mm (0.08 in) diameter tip for electronics work.
Compatible with AC70A alligator clips. |
| |
|
|
 |
|
SureGripTM Industrial Test Probes
Sharp,1/2” (12mm) stainless steel tip provides reliable contact
Flexible finger barrier improves grip
1000 V CAT III, 600 V CAT IV, 10A
Recommended for use with TL224 test leads |
| |
|
|
 |
|
Slim ReachTM Test Probe
Safety designed probes with slender, Slim-Reach bodies and stainless steel tips.
Effective for reaching closely-spaced deep test points or recessed terminals.
All Slim-Reach probes are rated for 10 amps, and may be used in 1000V CAT III environments.
4 mm (0.16 in) diameter tip designed to fit securely in IEC electrical wall sockets. |
| |
|
|
 |
|
Lantern Tip Test Probes
Tips include banana-style spring contacts with nickel-plates brass ends
Ideal for probing banana plug receptacles
CAT III, 1000V, 10A |
| |
|
|
 |
|
Electronic Test Probe
Designed for electronic probing of high density components or boards.
IC insulator cap prevents shorting of adjacent IC legs. Probe has tapered .
157" (4 mm) steel tip. 1000V, 10A rating.
One red, one black. |
| |
|
|
 |
|
Test Probe Adaptor Kit
Kit includes push-on adapters for test probes
Recommended for use with Fluke TL71 and TL75 Test Lead Sets
IC Test Tip adapters for probing closely spaced test points such as integrated circuit leads without shorting adjacent leads. Maximum 3A
Extended Probe Tips allow testing of hard to reach points. Maximum 3A
Medium Alligator Clips have maximum jaw opening of 7.6 mm (0.30"), Maximum 5A
CAT II, 300V, Maximum amps (as noted) |
| |
|
|
|
Accessorie Clip |
 |
|
Pin-Grabber Test Clips
- Insulated, nickel plated jaws grip objects up to 3/8” (9.5mm)
- Blunt tip grabs round screw heads
- 1000 V CAT III, 600 V CAT IV, 10A
- Recommended for use with TL222 test leads
|
| |
|
|
 |
|
SureGripTM Alligator Clips
- Profile narrows to .22 (5.6mm) inches at tip
- Hook opening .25" (6.4mm) at front, .08" (2mm) at base
- 1000 V CAT III, 600 V CAT IV, 3A
- Recommended for use with TL222 test leads
|
| |
|
|
 |
|
SureGripTM Hook Clips
- 4.5" (11.4cm) flexible insulated shaft
- Nickel plated pincers open to .20" (5mm)
- 1000 V CAT III, 600 V CAT IV, 1A
- Recommended for use with TL222 test leads
|
| |
|
|
 |
|
SureGripTM Pincer Clips
- Multi-purpose tooth pattern grips anything from fine gauge wire to a ¾” bolt (20mm 19.05 conversion)
- Nickel-plated steel jaws
- 1000 V CAT III, 600 V CAT IV, 10A
- Recommended for use with TL224 test leads
|
| |
|
|
 |
|
Heavy Duty Insulation Piercing Clip
- Plunger style, safety grip operation with insulated jaws.
- Small pin pierces 30 to 14AWG insulated wire
- 1000 V CAT III, 600 V CAT IV, 5A
|
| |
|
|
 |
|
Insulated 1000V Alligator Clip
- Intended for use with (dual) 1000V CAT III and 600V CAT IV rated Fluke meters
- Slide-on style insulated alligator clips accept standard probe tips diameters from .076” to .084”
- Ideal for use with Fluke TL71 and TL75 test probes
- Nickel-plated steel jaws open to 5/16”
- Conforms to safety standard IEC 1010-2-031, 1000V CAT III and 600V CAT IV
- Current Rating: 10A
|
