상품 설명

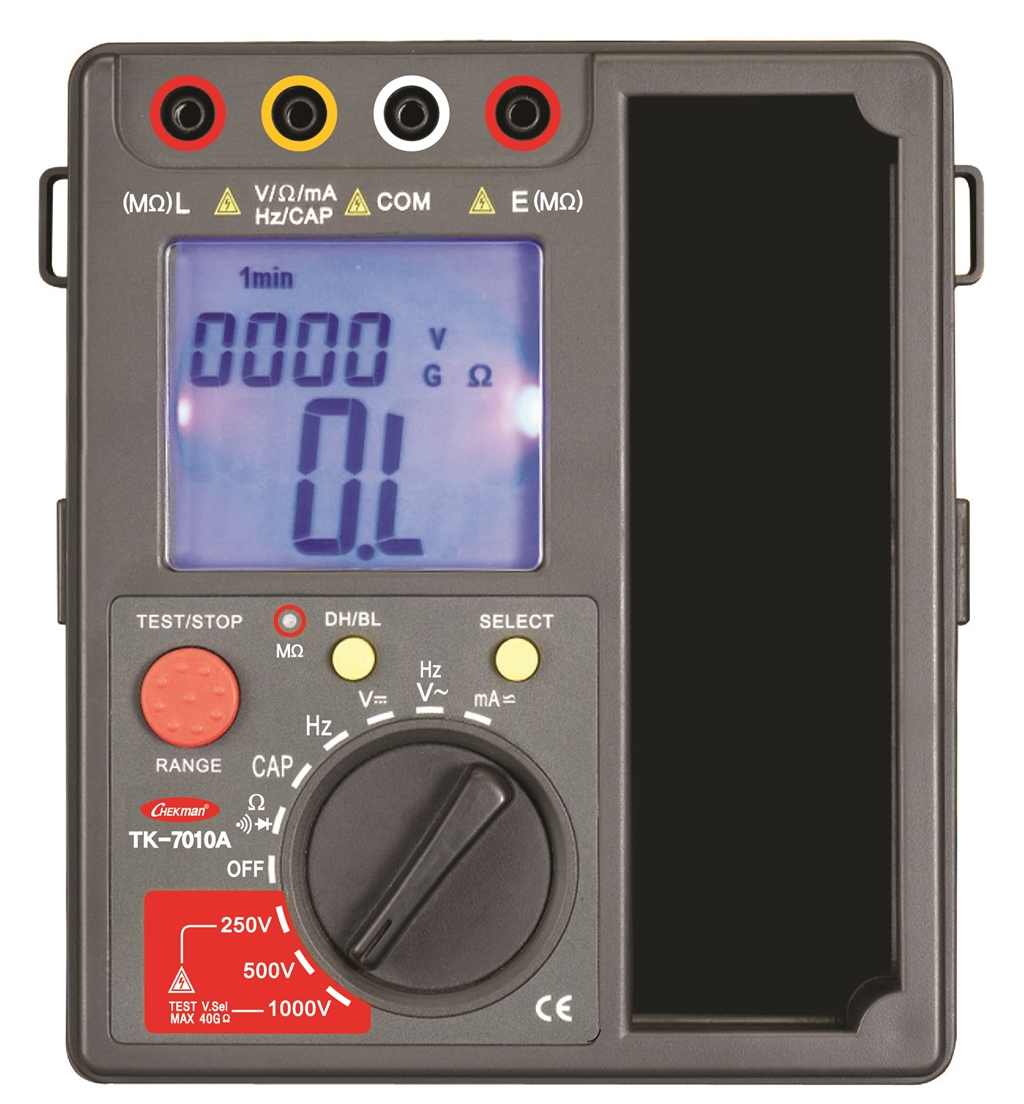

디지털 절연저항 멀티미터 TK-7010A
＊ 4000count
＊ 자동레인지
＊ 데이터홀드/ 빽라이트 기능
＊ 자동 전원 잠금기능(15분) - 절연저항 측정레인지 제외
＊ 절연저항 측정 기능 (250V, 500V, 1000V)
＊ AC/DC 전압 측정기능
＊ AC/DC 전류 측정기능
＊ 주파수 측정기능
＊ 저항측정, 도통측정 기능
＊ 콘덴서 측정기능
＊ 다이오드 측정기능
■ SPECIFICATION
⋅INSULATION RESISTANCE
Range
Measuring range
Accuracy
250V
4/40/400㏁
0.2㏁~200㏁ (±3%±5dgt)
500V
4/40/400/4GΩ(4000㏁)
200㏁~4GΩ (±5%±5dgt)
1000V
1.5㏁/40GΩ
4GΩ~40GΩ (±10%±5dgt)
⋅DCV 400mV/4/40/400V/1000V ±(1%±5dgt)
⋅ACV 4/40/400/700V ±(1%±5dgt)
⋅OHMS 400/4K/40K/400㏀ ±(1.5%±5dgt)
40㏁ ±(2%±8dgt)
⋅DCA 40/400mA ±(1.5%±8dgt)
⋅ACA 40/40mA ±(2%±8dgt)
⋅DIODE Test Voltage : approx. 1.7V
⋅CONTINUITY approx. 50±20Ω
⋅FREQUENCY 40/400/4k/40k/400k/4MHz ±(0.5%±3dgt)
⋅CAPACITANCE 40㎋/400㎋/4㎌/40㎌ ±(5%±5dgt)
⋅POWER SUPPLY Alkaline AA, R6(1.5V)×6pcs
⋅DIMENSION 156(W)×64(H)×170(D)mm
⋅WEIGHT approx. 660g (included batteries)
