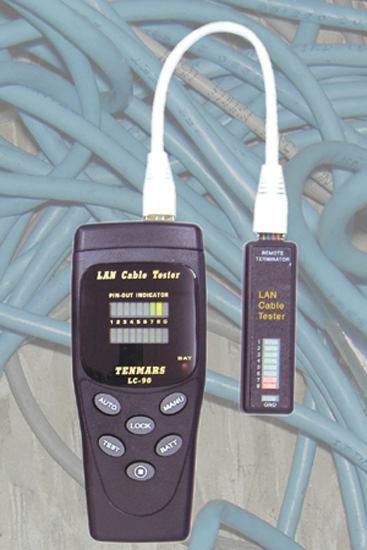

LC-90 ... LED Display Lan Cable Tester<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />
FEATURES
▪Test pin configuration for 10/100 base-T cable,10 base-2 cable,RJ45/RJ 11
modular cables,AT & T 258 A cable, EIA/TIA 568 A/568B cables and Token Ring
Cable etc.
▪Verify cable continuity, open, short and miss-wired.
▪Auto and manual scan function.
▪Ground wire test.
▪Locked status wire function.
▪Buzzer sound warning for defective wire detected.
SPECIFICATION
|
MODEL
|
LC-90
|
|
Specifications Display |
LED |
|
Connectors |
RJ-45 (8P8C) input/output |
|
Power |
9V 006P battery |
|
Remote Terminators |
Sequence number# 1 |
|
Function keys |
ON/OFF,TEST,AUTO,LOCK,MANU,BATT |
|
CABLE TYPES |
▪Unshielded Twisted Pair(UTP100, Cat3,4& 5).
▪Foil-screened Twisted Pair(FTP100 and 120, Cat3, 4&5).
▪Shielded Twisted Pair(STP150 IBM Type 1&6). |
|
RECOGNIZE WIRING
SCHEMES |
▪EIA/TIA-568A/B,USOC,10(100)
Base/HUB,BNC/10 Base-2.
▪10(100)Base-T, Token ring. |
DIMENSION:
▪Size:130x56x38mm(LxWxH) and 72x23x24mm(LxWxH)
▪Weight:About 250g
ACCESSORIES: ▪User¡¦s manual. ▪Carrying case x1pc. ▪9V battery x1pc
▪One patch cable (RJ-45 to RJ-45)
