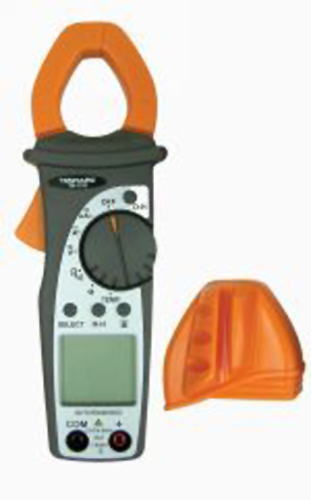

TM-1016 ¡K400A HVAC Autoranging AC Clamp Meter<?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />
- 3 3/4 digits LCD .
- Auto range , Auto power off.
- Use test leads measure 0.1~4000 uA. (AC/DC)
- Use jaw measured 0.01A~400A.
- Capacitance measure 10pF~4mF.
- Temperature(K-Type) measure - 50 ~1200 Celsius.
SPECIFICATIONS
|
Model
|
TM-1016
|
|
Max measuring current |
400A |
|
Display counts |
4000 Count Backlit LCD |
|
Max. Conductor size |
30 mm (11.8¡¨) |
|
AC Current |
0.1~4000uA/0.01A~400A +/-(2.0%+10) |
|
DC Current |
0.1~4000uA +/- (1.0%+2) |
|
AC Voltage |
1mV~600V +/-(1.0%+3) |
|
DC Voltage |
mV~ 600V +/- (0.8%+2) |
|
Resistance |
0.1 ~40M Ohm +/-(0.8%+2) |
|
Continuity buzzer |
YES |
|
Frequency |
|
|
Bargraph |
YES |
|
Autorange |
YES |
|
Auto power OFF |
YES |
|
Data hold |
YES |
|
Dimension |
205x64x39mm(LxWxH). |
|
Weight |
280g.(including battery) |
|
Power |
2 batteries 1.5V AAA type |
